Poly X70 AVB - 83Z51AA
SKU: 83Z51AA

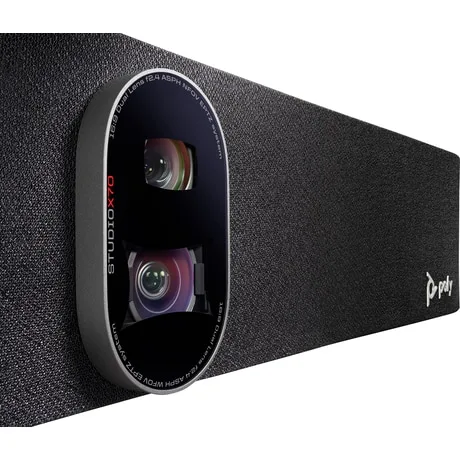

Poly Studio X70 All-In-One Video Bar 83Z51AA The Poly Studio X70, all-in-one video bar, offers quality audio and video performance in large meeting spaces. Enjoy pinpoint-accurate automatic framing and tracking modes, di…
hp-polypolypoly-studiopoly-video-conferencingpoly-webcam
Need help with this product?
Our specialists can answer questions about specs, availability, and the right configuration for your team.
Product Details
Full specifications and product information.
| Audio | Poly NoiseBlockAI technology; Poly Acoustic Fence technology |
| Audio standards | 22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A |
| Camera resolution | 2160p, 4K UHD (3840 x 2160) |
| Camera type | Dual-lens |
| Certified collaboration software | Zoom; Microsoft Teams; Google Meet |
| Content sharing | Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input |
| Content video resolution (input) | UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600) |
| Content video resolution (output) | UHD (3840 x 2160); WUXGA (1920 x 1200); HD (1920 x 1080); WSXGA+ (1680 x 1050); SXGA+ (1400 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768) |
| Country of origin | Made in Laos |
| Diagonal field of view (dFoV) | 140° (wide); 78° (narrow) |
| Digital signage | Appspace; Raydiant |
| Heat dissipation cooling | 65 BTU/h |
| Horizontal field of view (hFoV) | 120° (wide); 70° (narrow) |
| Interoperability | All cloud service providers through Poly Video App mode; USB Device mode; Support for native 3rd party applications including Zoom, Microsoft Teams, Dialpad, GoToRoom, RingCentral and StarLeaf |
| Lens cover capabilites | Integrated |
| Management Software | Poly Lens |
| Manufacturer product number | 7200-87290 |
| Manufacturer Warranty | Poly standard one-year limited warranty |
| Microphone pickup range (metric) | Up to 7.62 m |
| Microphone type | Two MEMS microphones; Two second-order microphones |
| Network capabilities | IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP) |
| Non-Operating Humidity Range | 5 to 95% |
| Non-operating temperature - Celsius | -40 to 70 °C |
| Operating altitude | 4,877 m |
| Operating humidity range | 15 to 80% |
| Operating temperature range | 0 to 40 °C |
| Operating voltage | 37 VA @ 120 V @ 60 Hz; 37 VA @ 230 V @ 50/60 Hz |
| People video resolution | 4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512 Kbps |
| Physical security | Standard Kensington lock slot |

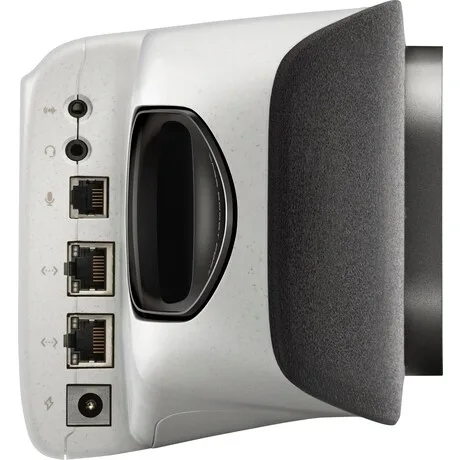

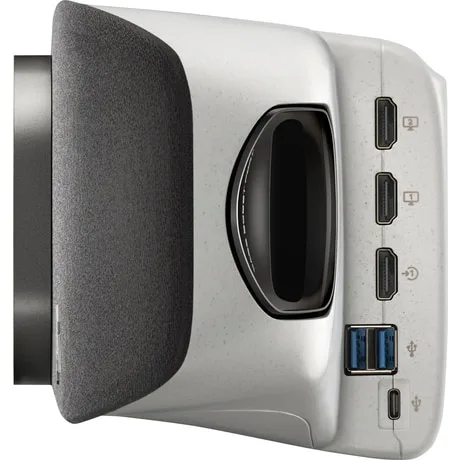

| Ports | 1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 2 RJ-45; 1 audio-in; 1 audio-out; 2 HDMI-out 1.4 (video); 1 HDMI-in 1.4 (audio) |
| Power supply type | External; Auto sensing |
| Registration required | No |
| Security | AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; BFCP; Local account password policy configuration; Security profiles; Secure defaults; Media encryption (H.323, SIP); Remote logging with support for TLS |
| Security management | AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; Local account password policy configuration; Security profiles; Local account and login port lockout; Secure defaults; Remote logging with support for TLS; Active directory external authentication; Binary Floor Control Protocol (BFCP) |
| Sensitivity (speaker) | 83 dB (1 W/1 m) for mid speakers; 89 dB (1 W/1 m) for tweeter speakers |
| Smart camera technology | People framing; Group framing; DirectorAI perimeter; Speaker framing |
| Speaker output power | 2 x 20 W (RMS for mid speakers); 2 x 30 W (maximum for mid speakers); 2 x 15 W (RMS for tweeter speakers); 2 x 20 W (maximum for tweeter speakers) |
| Speaker type | Two-way stereo speakers |
| Total camera resolution (megapixels) | 2 x 20 MP |
| UNSPSC code | 45111902 |
| Video frame rate | 5–30 fps (up to 4K resolution at 15 fps in call) |
